Item List

Veneer Waste Chippers

SKU#: VM 149 Casati waste chippers
Our Price:
Call for Price
Quantity:



Additional Product Images

Product Overview

This machine is for chipping strips of veneer waste.


Product Details

The strips cut are made by a cross knife which reduces them to small pieces. With this machine it is possible to have a considerable volume reduction of waste materials which could than be removed with your extraction system.

A belt conveyor moves the materials into the cutting area. The power transmission is by means of a reduction gear operating with a self-braking motor and double lateral crank drives.

These machines could be placed in front of a single knife guillotine so that the operator can place the veneer waste on the conveyor which will carry it off to the veneer waste chipper.

Chippers can also be placed behind a double knives guillotine to recover and chip veneer waste produced by these machines.

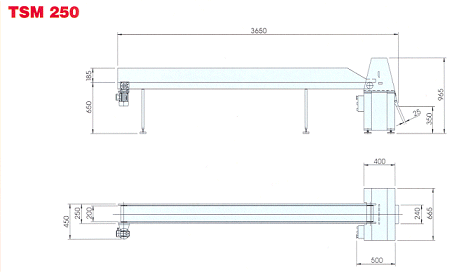

Model TSM 250 Technical Data
Useful cutting width mm. 250
Cutting height mm. 50
Number of cuts per minute n/1' 56
Cross knives n. 1
Installed power kW 0,75
Working table height mm. 650
Weight Kg 230

BELT CONVEYOR TSM 250
Total length mm. 3400
Useful length mm. 3200
Useful width mm. 220
Useful height mm. 650
Motor power speed of conveyor kW 0,18
Weight Kg 100

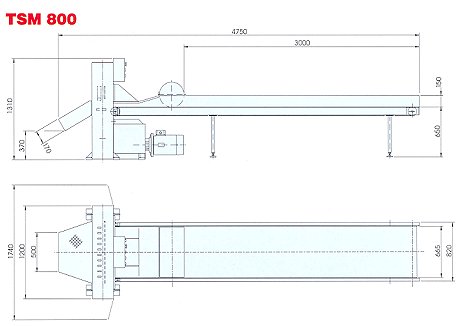

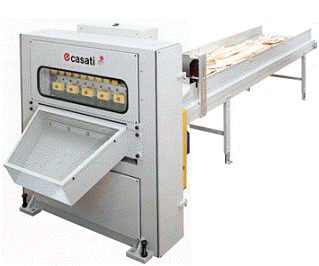

Model TSM 800 Technical Data
Useful cutting width mm. 650
Cutting height mm. 90
Number of cuts per minute n/1' 56
Cross knives n. 1
Longitudinal knives n. 10
Installed power kW 5,5
Working table height mm. 650
Weight Kg 1000


BELT CONVEYOR TSM 800
Total length mm. 4000
Useful lenght mm. 3000
Useful width mm. 665
Useful height mm. 650
Step size for each cut mm. 10¸60
Speed of conveyor compressed air bar 3
Weight Kg 300
